Devinci

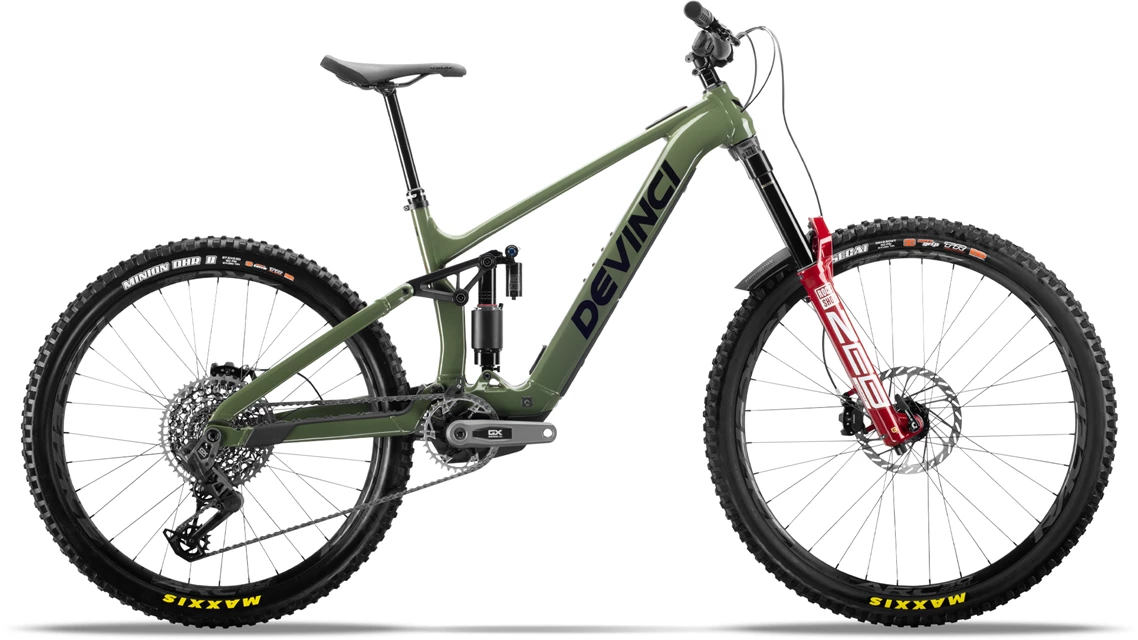

E-SPARTAN LITE GX AXS 12s Deep Olive

$9,999.99
On backorder

Available in store

Delivery time: Call now for details on stock or to order 604-559-7547
  • E-ENDURO

    Light assist. Burly capability.

    Big bike energy, now electrified. Tame the burly without holding back. The E-Spartan Lite is built to turn turbulence into confidence. Made in Canada and powered by German precision, its chassis hides Bosch’s Performance Line SX drive system and a 400Wh battery. With 165mm of rear travel and 170mm up front, a don’t-hold-back attitude, and Devinci’s lifetime warranty, the E-Spartan Lite is built to perform where it matters most…on burly territory.

    Specifications

    E-Spartan Lite GX AXS 12s

    Handcrafted in Canada

    Frame

    • FRAMEAluminum Optimum G04 165mm
    • HEADSETFSA Orbit | 1.5 | Zero Stack
    • SEAT CLAMPAlloy CNC | 34.9mm

    Suspension

    • SUSPENSION FORKRockshox Zeb Ultimate DB | 29 | 170mm | 110x15 | 44 Offset
    • REAR SHOCKRockshox Vivid Ultimate | 205X65T

    Cockpit

    • HANDLEBARRaceFace ERA 35 | B:35mm | R:40mm | W:800mm
    • STEMRaceFace Turbine | B:35mm | L:40mm | 0°
    • SADDLESDG BELAIR Max eMTB
    • SEATPOSTSDG Tellis 31.6mm
    • SEATPOST LEVERSDG Tellis | Matchmaker | 1x Lever
    • GRIPSDevinci | w/lock-on

    Brakes

    • FRONT BRAKESRAM Maven Silver
    • REAR BRAKESRAM Maven Silver
    • FRONT ROTORSRAM HS2 | 200mm
    • REAR ROTORSRAM HS2 | 200mm

    Drivetrain

    • REAR DERAILLEURSRAM GX Eagle AXS | T-Type | 12s
    • REAR SHIFTERSRAM AXS POD | 12s
    • CRANKARMSRAM GX Bosch | 155mm
    • CHAINRINGSram XX Eagle 34T Bosch EMTB
    • CASSETTESRAM XS1275 | T-TYPE | 12s | 10-52T
    • CHAINSRAM GX | T-Type | 12s
    • CHAIN GUIDEDevinci Direct Mount

    Wheels

    • FRONT RIMRaceFace ARC30 29 | 30mm inner | TR
    • FRONT HUBRaceFace Vault | TA 15x110mm | 6bolts
    • REAR HUBRaceFace Vault | Boost 148x12 | XD | 6bolts
    • REAR RIMRaceFace ARC30 27.5 | 30mm inner | TR
    • SPOKESSapim Stainless 14G w/Nylok
    • FRONT TIREMaxxis Assegai | 29x2.5 | 3C | DD | TR | MaxxGrip
    • REAR TIREMaxxis Minion DHR II | 27.5x2.5 | 3C | DD | TR | MaxxTerra

    E-System

    • COMPUTERBOSCH System controller BRC3100
    • DRIVE UNITBosch Performance Line SX | 60NM | 600W
    • BATTERYBosch CompactTube 400 | 36V | 400 Wh

    Weight

    21.45 kg / 47.29 lb
    *For a size medium complete bike, weight approximate and subject to change.
    Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

    ROCKSHOX ULTIMATE SERIES

    Offering maximum adjustability and featuring the latest innovations in damper technology, RockShox’s Ultimate series represents the pinnacle of the suspension manufacturer’s lineup. The E-Saprtan Lite GX AXS is equipped with the Zeb Ultimate fork, which includes the 3.1 Charger damper, ButterCups, and the DebonAir+ air spring. At the rear, RockShox’s Vivid Ultimate takes care of rear shock duties, delivering incredible traction, tunability, and control.

    BOSCH PERFORMANCE LINE SX

    German engineering in a Canadian-made frame. Weighing at 4.4 lbs (2.0 kg), Bosch’s lightest drive unit yet, the Performance Line SX delivers 55-60 Nm of torque and has a maximum power output of 600 watts. To achieve its light weight, the motor is built around a magnesium housing. The Performance Line SX utilizes Bosch’s smart system, making it compatible with their app eBike Flow and, therefore, fully tunable for the rider’s preferences.

    FRAME TECH SPECS

    Rear travel 165 mm
    Front travel 170 mm
    Wheel size Mixed-Wheel (27,5'' rear & 29'' front)
    Rear tire clearance 27,5'' x 2.6”
    Rear hub spacing 12 x 148 Boost
    Max & min chainring clearance 36T - 32T
    Chainline 55 mm
    Derailleur hanger UDH™
    Caliper mount 200 mm Post Mount
    Max rear rotor size 220 mm
    Seat tube diameter 31.6 mm ID / 34.9 mm OD
    Dropper post length M → 170 mm / L → 200 mm / XL → 230 mm
    Seatpost max insertion M → 270 mm / L → 300 mm / XL → 340 mm
    Headset Top ZS44 | Bottom ZS56
    Cable routing Internal
    Rear shock dimension Trunnion | 205 x 65 mm
    Rear shock hardware Top NA | Bottom 35 x 10 mm
    Linkage bearing type Enduro™ double-lip sealed
    Fork dimensions Axle-to-Crown measurement 586 mm / Offset 44 mm
    Chain guide mount Low Direct Mount
    Drive unit Bosch Performance Line SX | Smart System
    Battery Bosch CompactTube 400 - 400Wh
    Frame material Aluminium 6061-T6 | Optimum G04
