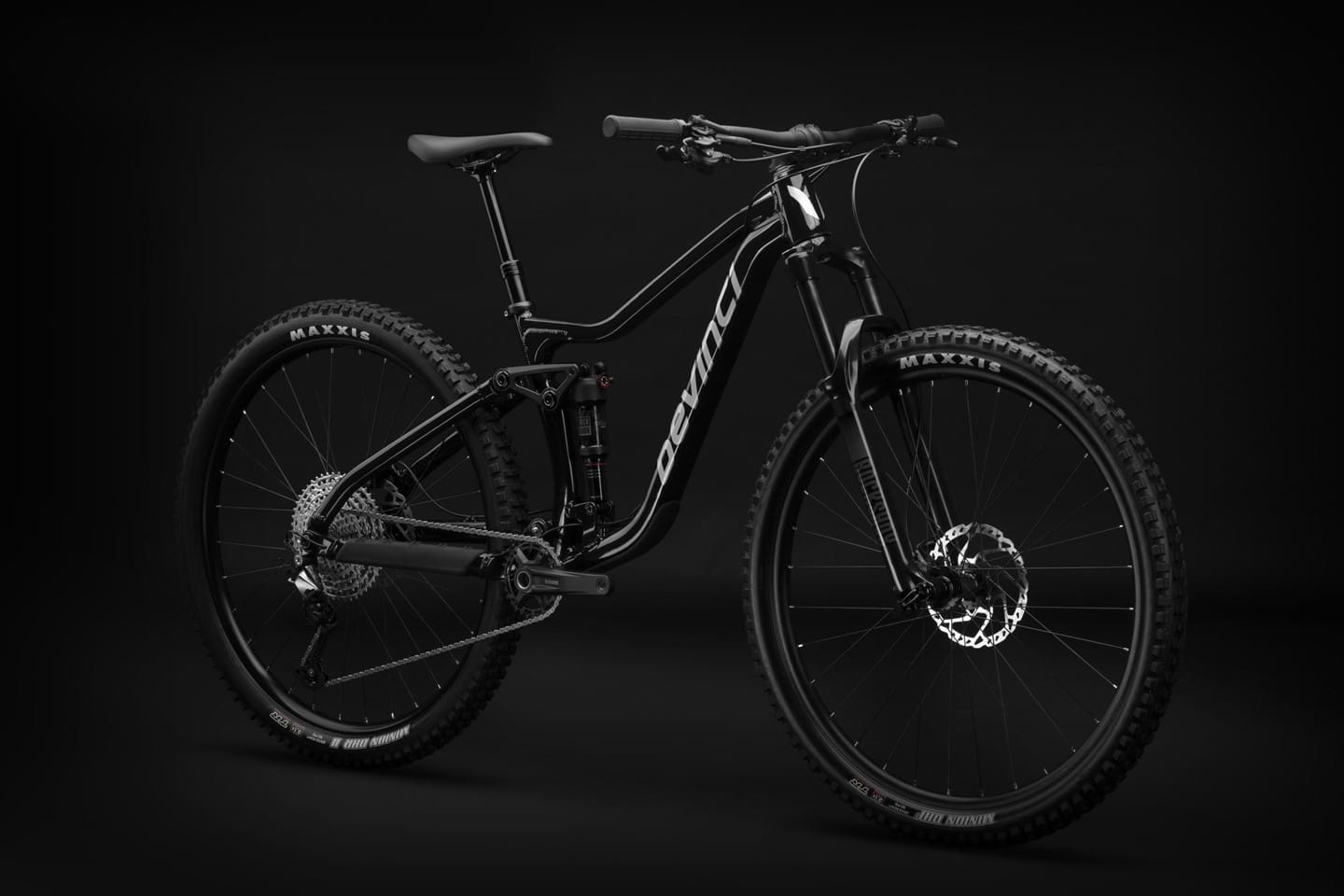

THE ALL-NEW 2022 MARSHALL
The Marshall is a Made in Canada, made for the people, light-up the trails dual-suspension mountain bike. At its core, the all-new 130mm travel aluminum frame delivers Split-Pivot performance and reliability with key features like Boost spacing, size-appropriate wheel sizes, a dropper post, frame protection and a lifetime warranty—all in a more wallet-friendly package.
GEOMETRIES
- FRAMEAluminum Optimum G04 130mm
- HEADSETFSA Orbit | 1.5 | Zero Stack
- SEAT CLAMPAlloy CNC | 34.9mm
- SUSPENSION FORKRockshox 35 Silver TK SoloAir 140 | 51 Offset
- REAR SHOCKRockshox Deluxe Select R Debonair | 2T | 210x50
- HANDLEBARV2 Pro | B:35mm | R:15mm | W:780mm
- STEMV2 Pro | B:35mm | L:50mm | 0°
- SADDLEDevinci
- SEATPOSTTranzX Dropper | 31.6mm | 1x Lever
- GRIPSDevinci Performance | w/lock-on
- FRONT BRAKEShimano Deore M4100/MT420 | 4 Pistons
- REAR BRAKEShimano Deore M4100/MT420 | 4 Pistons
- ROTORSShimano RT66 | 180mm
- REAR DERAILLEURShimano Deore M6100 | 12s
- REAR SHIFTERShimano Deore M6100 | 12s | I-spec EV
- CRANKSETShimano MT510 | 30T
- BOTTOM BRACKETShimano BB52 | BSA | 68/73mm
- CASSETTEShimano M6100 | 12s | 10-51T | Microspline
- CHAINShimano Deore M6100 | 12s
- FRONT RIMV2 Comp | 29mm inner | TR
- FRONT HUBFormula DC-711 | Sealed | 6bolts | TA 15x110mm
- REAR RIMV2 Comp | 29mm inner | TR
- REAR HUBFormula MST-148 | Sealed | 6bolts | TA12x148mm | Microspline
- SPOKESSapim Stainless 14G w/Nylok
- FRONT TIREMaxxis Minion DHF | 29x2.5wt | DualCompound Exo TR
- REAR TIREMaxxis Minion DHRII | 29x2.4wt | DualCompound Exo TR
Weight
15.84 kg / 34.92 lb
*For a size medium complete bike, weight approximate and subject to change.
