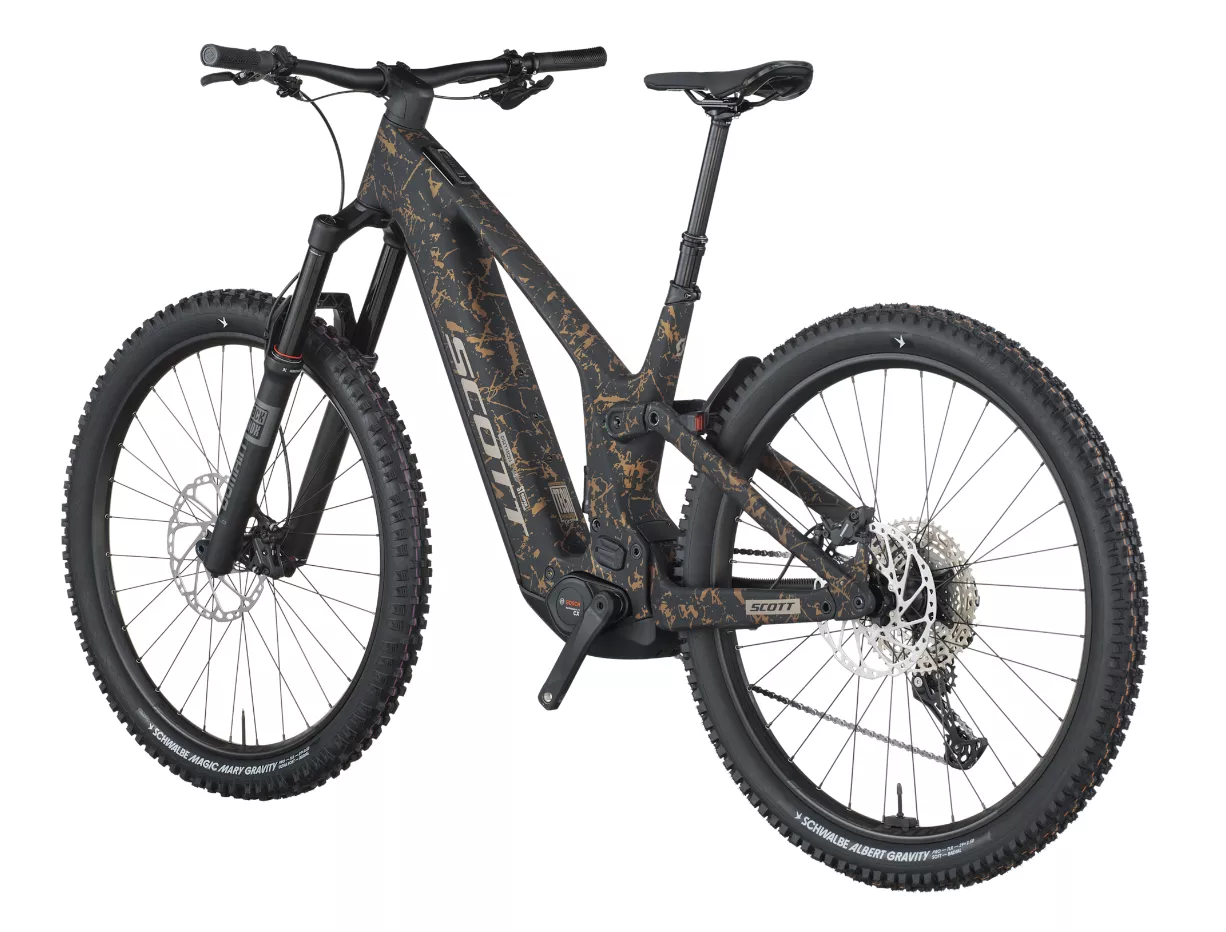

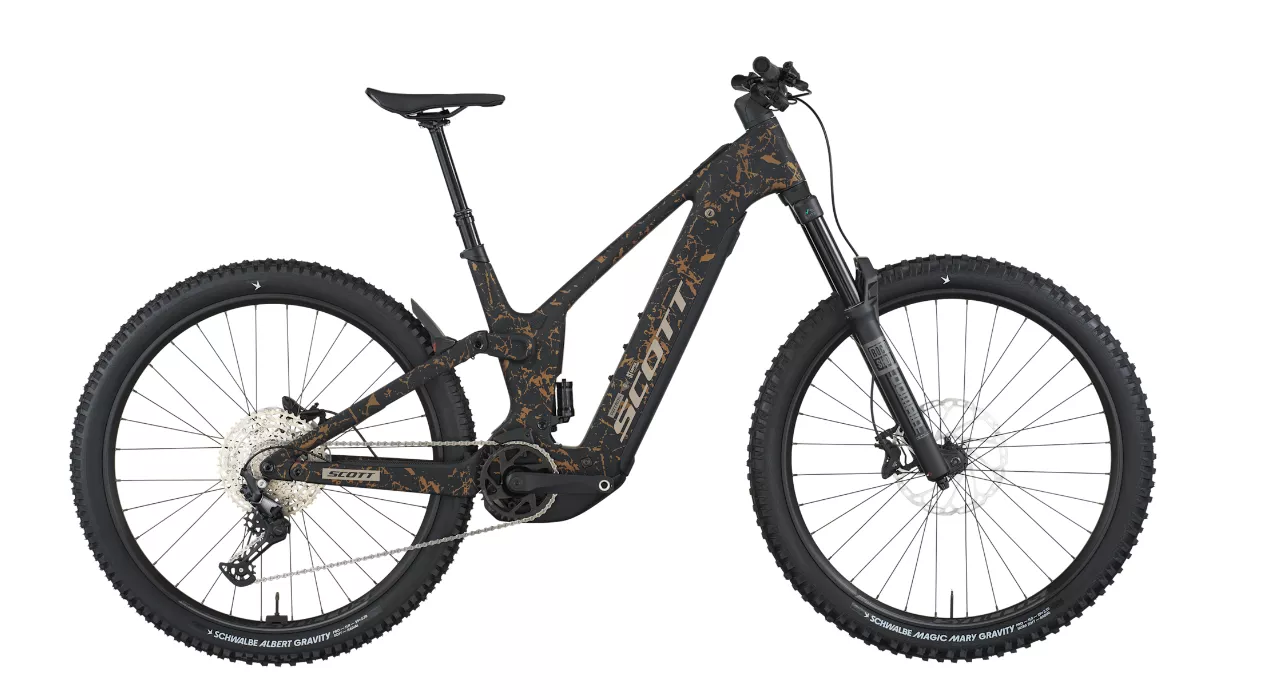

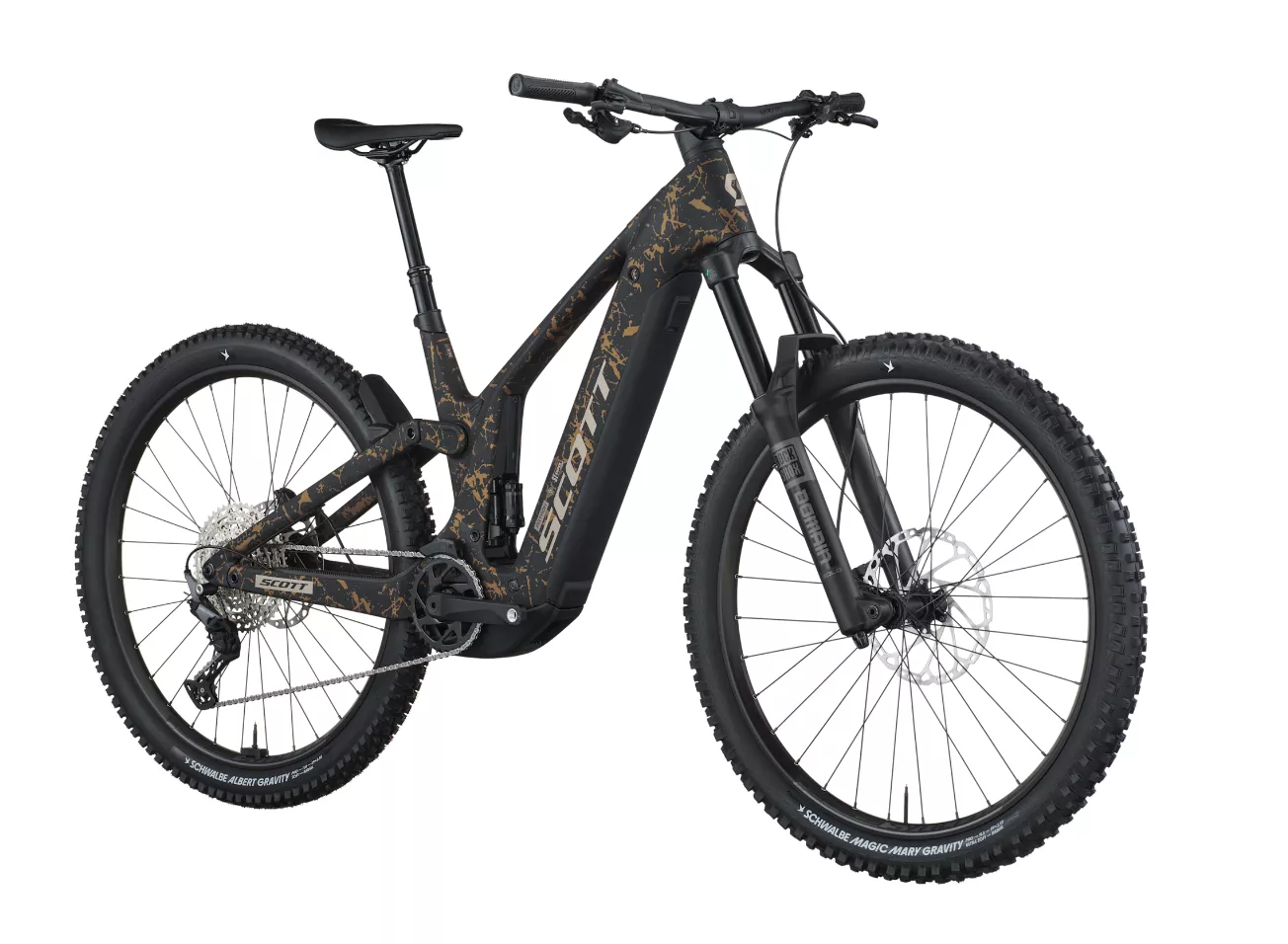

The Patron eRIDE ST. For when you want to go really, really big.
Put the Super in 'Super Trail' with a 170mm of front travel, 150mm of rear travel with a piggyback shock and its burlier tire spec. With up to 1050Wh of reliable Bosch battery power (800Wh + 250Wh), the Patron boasts the largest combined battery capacity ever featured on a SCOTT eMTB. So you can bet it's ready for the longest, most demanding rides. Add in ABS Pro, top notch spec and tires and you're ready for anything. Be your own shuttle with the Patron ST.
Key Features
- Carbon Main Frame, Alloy Rear Triangle
- Bosch CX, 800Wh PowerTube, SmartSystem Engine System
- RS Domain R 170mm Fork
- RS SuperDeluxe, 150mm Shock
- Shimano Deore 12 Speed Drivetrain
- Shimano Deore 4 Piston Disc Brakes
- Schwalbe Foldable Tires
- Syncros Dropper Post and Part
-
Frame
Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline
Virtual 4 Link kinematic, Adjustable head angle
Integrated Suspension Technology
Syncros Cable Integration System
Bosch PowerMore Ready
Kickstand mount
Carbon Main Frame, Alloy SST-CST
-
Travel
Front: 170mm, Rear: 150mm
-

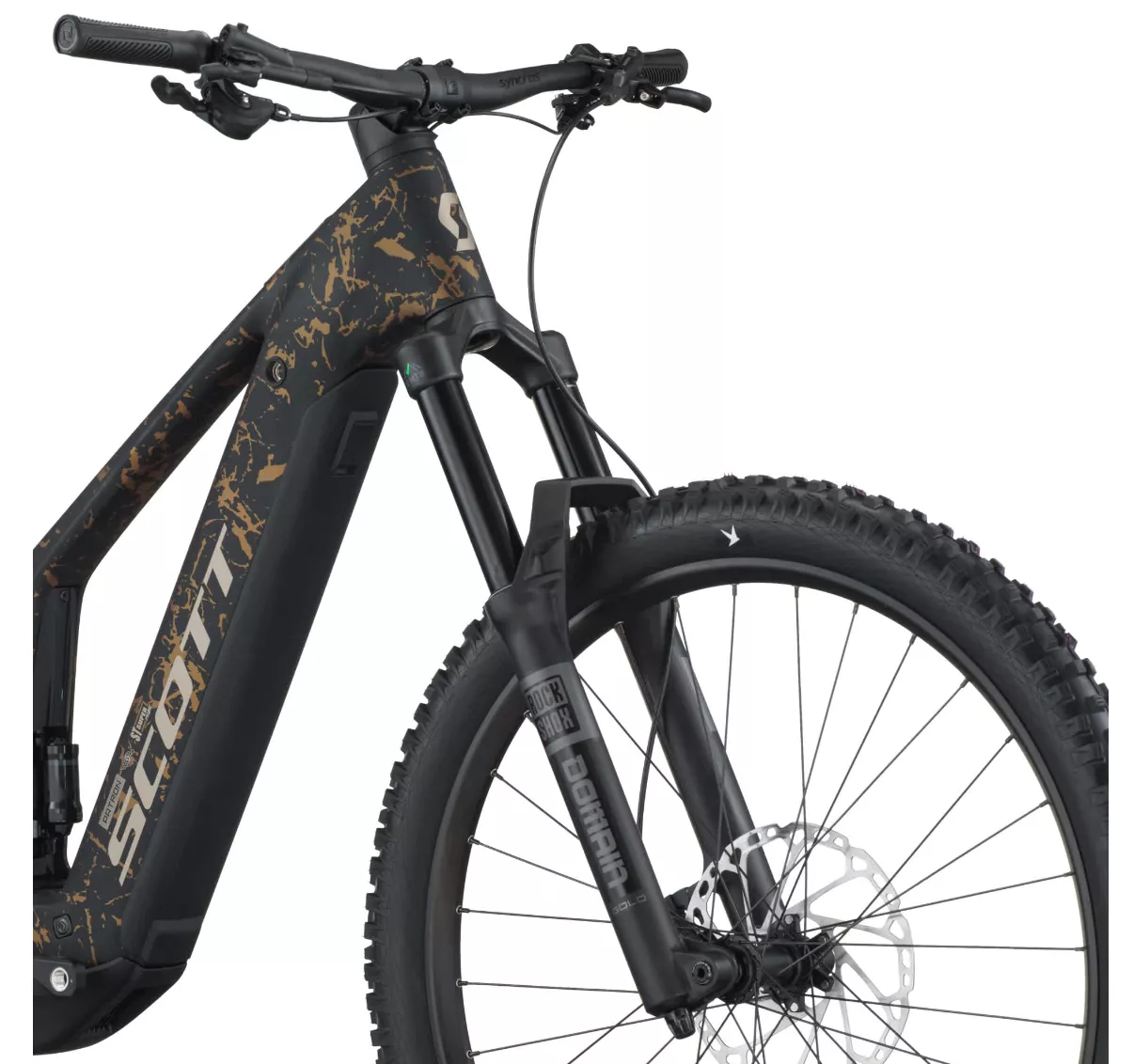

Fork
RockShox Domain R Air, E-Bike, Reb Adj., 15x110mm axle
44mm offset, tapered steerer, 170mm travel
-
Rear Shock
RockShox SuperDeluxe, DebonAir Linear, Trunnion, Reb Adj., T185X55mm
-

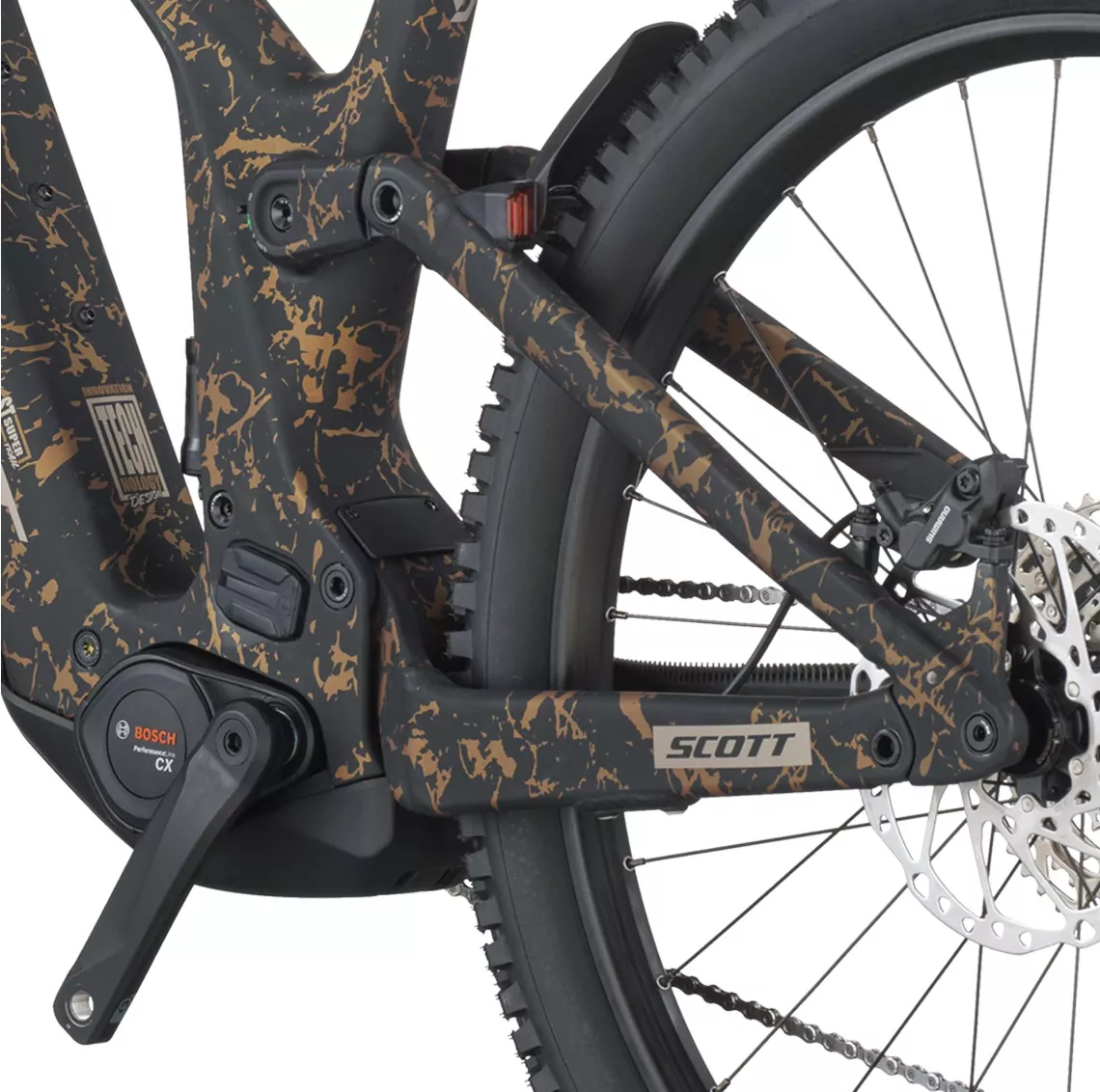

Drive Unit
EU: 25kmh, INT: 20mph
Bosch Performance Line CX (BDU384Y)
-
Battery
PowerTube 800Wh
-
Display
Bosch System Controller, Mini Remote
-
Charger
4A Charger
-
Rear Derailleur
Shimano Deore RD-M6100 SGS
Shadow Plus, 12 Speed
-
Shifters
Shimano Deore SL-M6100-IR, Rapidfire Plus
-
Crankset
FSA Alloy
-
Chainguide
e*thirteen, e*spec Slider
-
Chainring
FSA 12 Speed 36T chainring
-
Chain
Shimano CN-M6100
-
Cassette
Shimano CS-M6100, 10-51
-
Brakes
Shimano Deore M6120 4-Piston Disc
-
Rotor
Front: SM-RT64 CL 220mm, Rear: SM-RT64 CL 203mm
-
Handlebar
Syncros Hixon 2.0 Alloy 6061
Size S & M 15mm rise, Size L & XL 25mm rise, back sweep 8°, 780mm
Syncros Endurance lock-on grips
-
H'stem
Syncros AM 2.0
Syncros Cable Integration System
4° rise, 6061 Alloy, 31.8mm, 1 1/8"
-
Seatpost
Syncros Duncan Dropper Post 2.5, 31.6mm
S size 125mm, M size 150mm, L size 170mm, XL size 200mm
-
Seat
Syncros Tofino-E 2.5 Regular
-
Headset
Syncros - Acros Angle adjust & Cable Routing HS System, +-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
-
Front Hub
Formula CL-811, 15x110mm
-
Rear Hub
Formula ECT-148M, Boost 148x12mm
-
Spokes
Stainless Black
-
Rims
Syncros MD30, 32H, 30mm, Pin Joint
Tubeless ready
-
Front Tire
Schwalbe Magic Mary 29x2.5", Gravity, Radial, Ultra Soft, Tubeless ready
120TPI Foldable Bead
-
Rear Tire
Schwalbe Albert 29x2.5", Gravity, Radial, Soft, Tubeless ready
120TPI Foldable Bead
-
Lights
Syncros integrated rear fender light
Front Light Cable pre-installed
-
Extras
Kickstand mount
-
Approx weight in KG
25.3
-
Approx weight in LBS
55.78
-
Max. System Weight
130kg
The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
