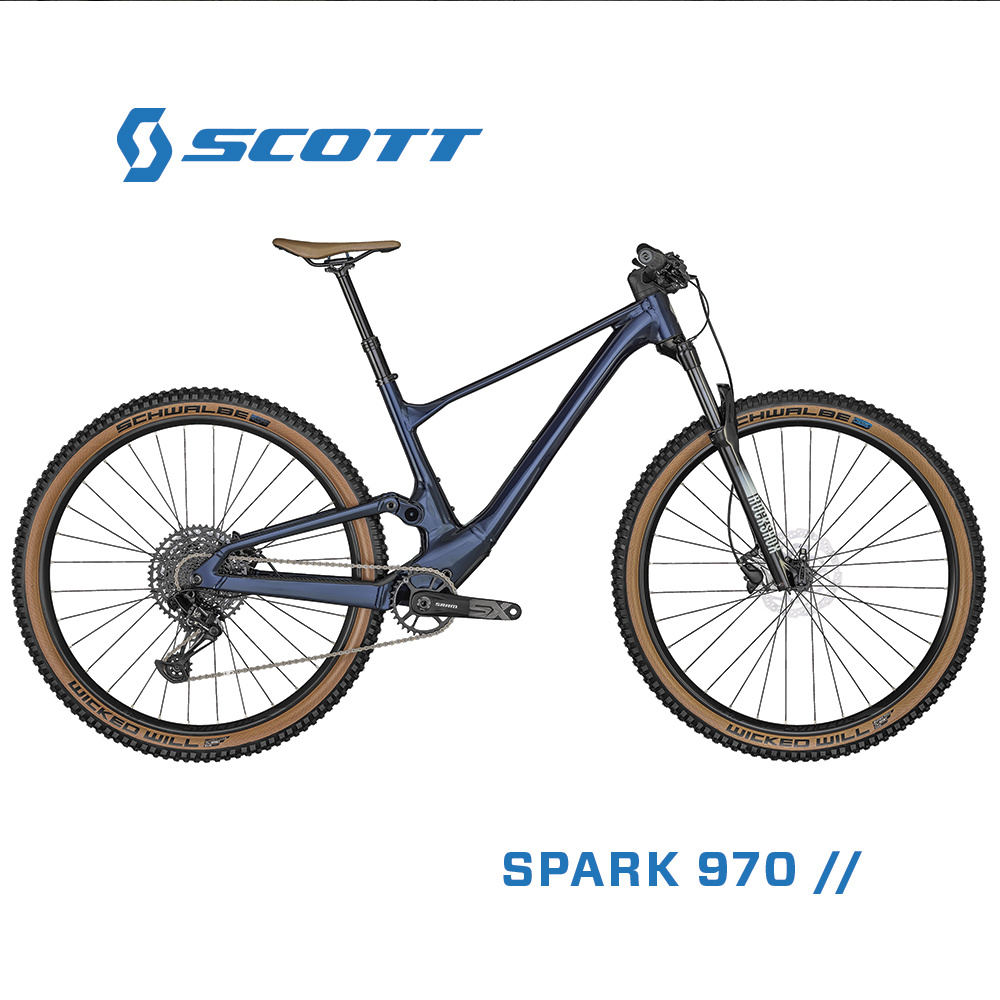

When you think of the perfect mountain bike, what comes to mind? For us, it's the all new Spark 970. Why, you ask? Well, beyond the fact that it is fast, lightweight and ultra capable on all sorts of terrain, it's just damned good lookin'. Short-travel trail bike? "Downcountry" rig? Occasional race bike? Whatever, call it what you want to call it. All we know is that this is one hell of a mountain bike.
FRAME
Spark Alloy SL 6011
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
BB92 / UDH Interface / 12x148mm with 55mm Chainline
-
FORK
RockShox Judy Silver TK Solo Air
15x110mm QR axle / 42mm offset / Tapered Steerer
2-Modes / Reb. Adj. / Lockout / 130mm travel
-
REAR SHOCK
X-Fusion NUDE 5 RLX Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Reb. Adj.
Travel 120-80-Lockout / T165X45mm
-
REMOTE SYSTEM
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 Suspension modes
-
REAR DERAILLEUR
SRAM NX Eagle 12 Speed
-
SHIFTERS
SRAM SX Eagle Trigger
-
CRANKSET
SRAM SX Eagle DUB
55mm CL / 32T
-
BB-SET
SRAM DUB PF 92 MTB Wide / shell 41x92mm
-
CHAIN
SRAM CN SX Eagle
-
CASSETTE
SRAM SX-PG1210 / 11-50 T
-
BRAKES
Shimano MT201 Disc
-
ROTOR
Shimano SM-RT10 CL / F&R 180mm
-
HANDLEBAR
Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Pro lock-on grips
-
H'STEM
Syncros DC 3.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8"
-
SEATPOST
Syncros Duncan Dropper Post 2.5
31.6mm / S & M size 130mm / L & XL size 150mm
-
SEAT
Syncros Tofino 2.5 Regular
-
HEADSET
Syncros - Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB
-
HUB (FRONT)
Formula CL-811 / 15x110mm
-
HUB (REAR)
Formula CL-3248 / 12x148mm
-
SPOKES
Stainless Black 15G / 1.8mm
-
RIMS
Syncros X-30SE / 32H / 30mm
-
FRONT TIRE
Schwalbe Wicked Will 29x2.4"
Performance / TLR / Addix
-
REAR TIRE
Schwalbe Wicked Will 29x2.4"
Performance / TLR / Addix
-
APPROX WEIGHTS IN KG
14.95 (with tubes)
-
APPROX WEIGHTS IN LBS
32.96 (with tubes)
