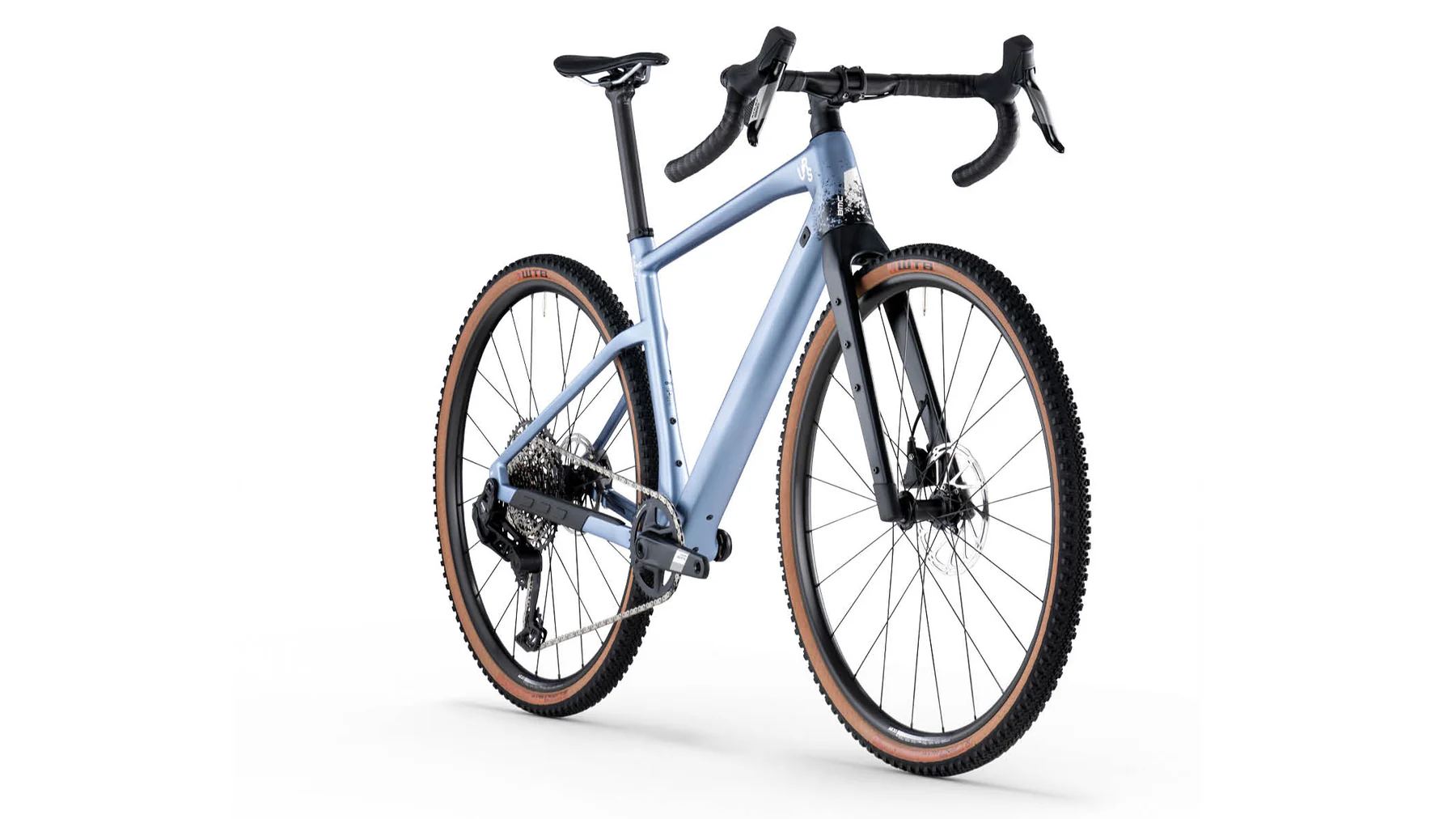

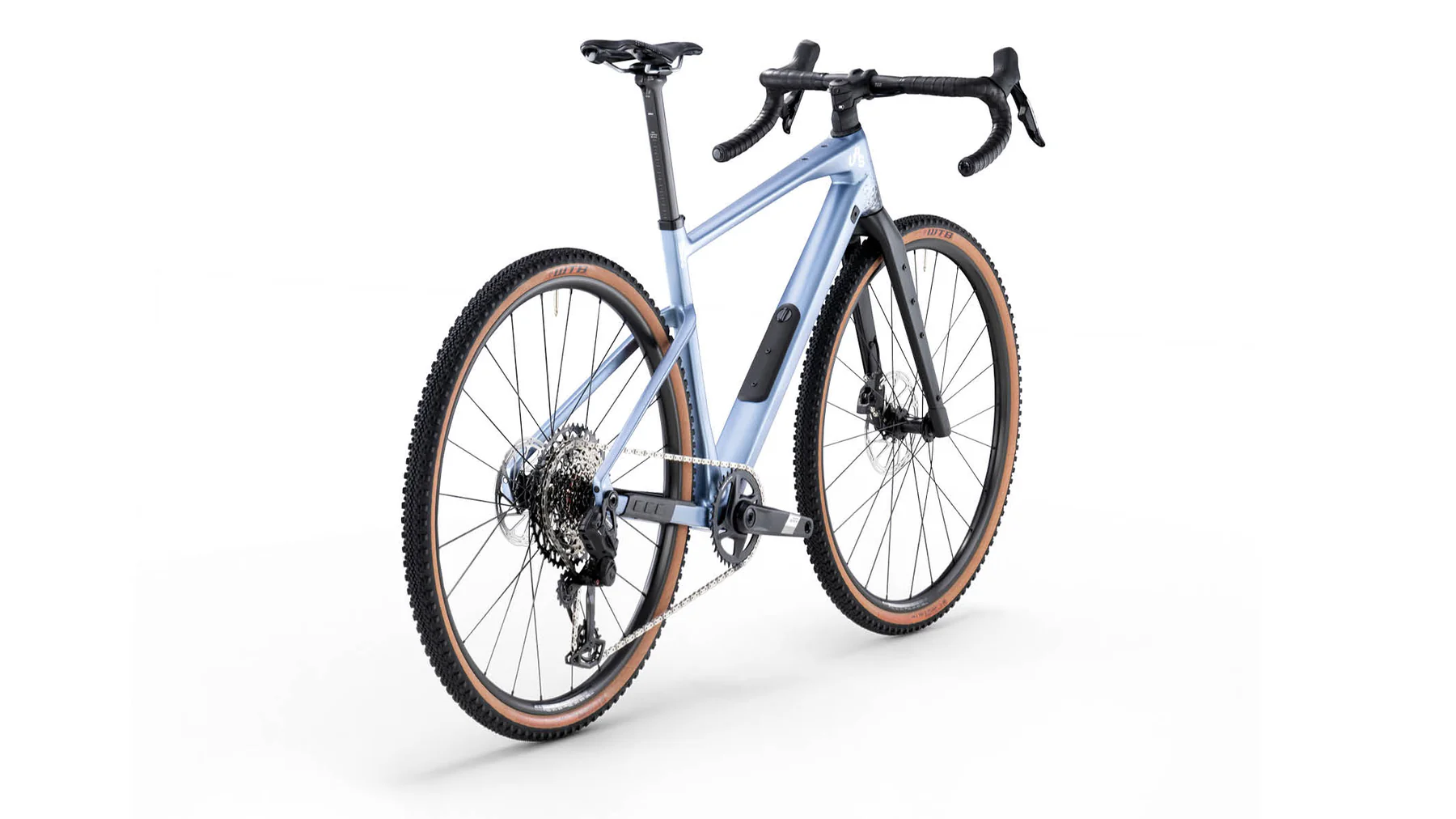

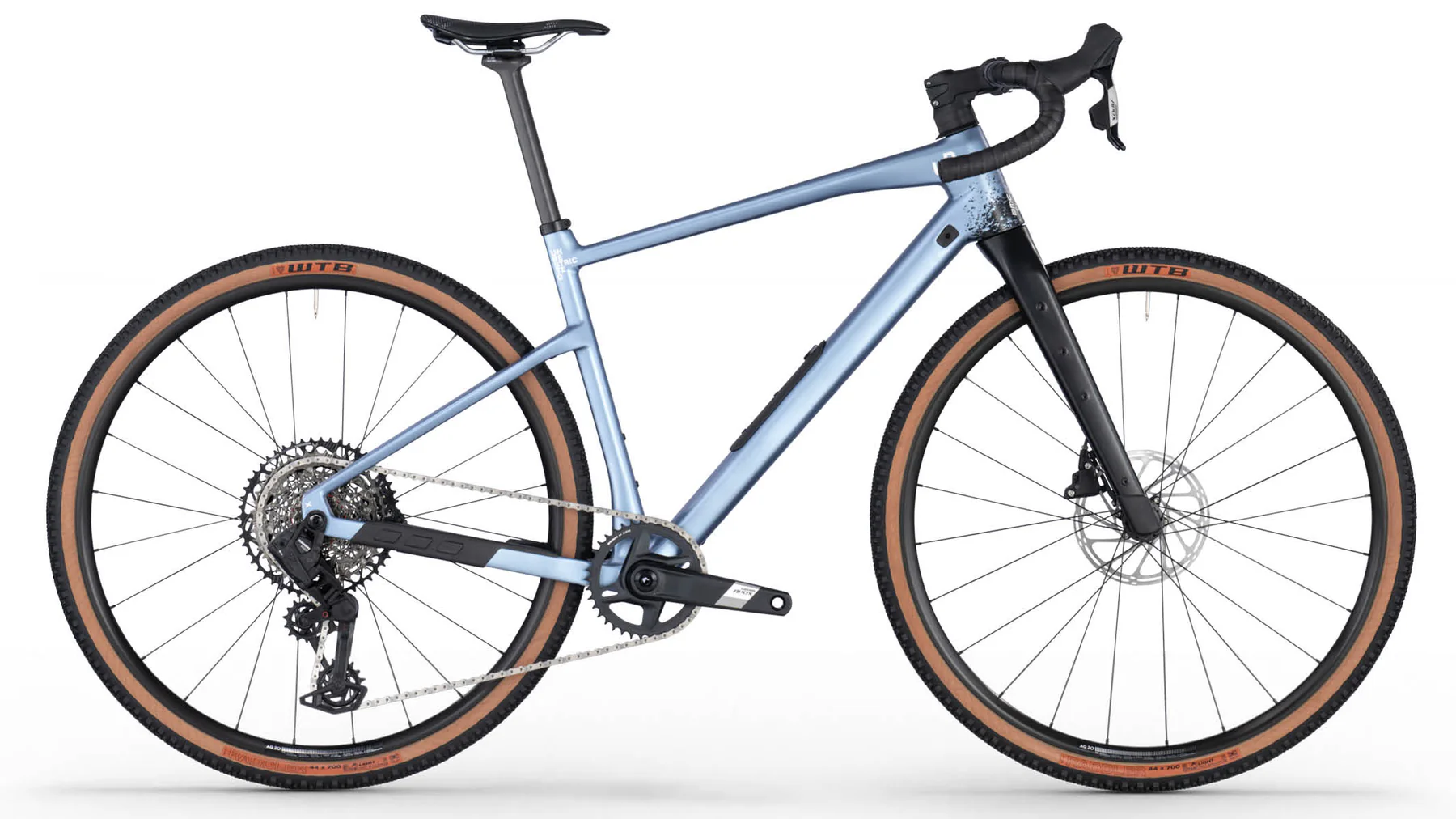

Ready for your next gravel adventure? The URS ONE strikes the perfect balance of gravel-ready geometry, lightweight design, and user-friendly features. Its innovative frame and fork offer everything you need: large downtube storage, multiple cargo mounts, a D-shape seatpost for superior compliance, and reinforced protectors to safeguard the carbon from impacts. Equipped with the SRAM Apex groupset, an upgraded stem and gravel bar combo, new AG 20 aluminum wheelsets, and 44mm WTB Raddler tires, this gravel and bike packing bike is ready for any challenge. With the URS ONE, you’re set to tackle any terrain, embrace every adventure, and push your limits further than ever.
Frameset
Frame:
URS Carbon with Gravel+ Geometry | Tuned Compliance Concept Gravel | Integrated Storage | Fender and Rack Mounts | Flat Mount Disc | 12 x 142mm Thru-Axle | UDH Dropout Universal Derailleur Hanger
Fork:
URS Carbon | Internal Brake & Hub Dynamo Cable Routing | Fender Mounts | Cargo Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Stem:
BMC RSM 01 | Integrated Cockpit System Technology
Handlebar:
BMC HB D4 03, 0, 16 | Alloy 6061 | Gravel Geometry | 115mm drop, 70mm reach, 16° flare
Seat
Seatpost:
URS | Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible
Saddle:
WTB Gravelier Steel SL | Medium
Drivetrain
Crankset:
SRAM Apex 1 AXS DUB WIDE
Chainrings:
38T
Cassette:
SRAM Eagle Transmission (XS-1270)
Cassette Size:
10-52T
Chain:
SRAM GX Eagle Transmission Flattop
Rear Derailleur:
SRAM S1000 Eagle Transmission
Shifters:
SRAM Apex AXS (ED-APX-D1)
Gears:
1 x 12
Bottom Bracket:
SRAM Press Fit DUB
Brakes
Brake Levers / Calipers:
SRAM Apex AXS (ED-APX-D1)
Rotors:
SRAM Centerline | Centerlock
Rotor Size (F/R):
180 / 160mm
Wheels
Rims:
AG 20 | Tubeless Ready | 20mm
Hubs (F/R):
AG 20
Tires:
WTB Raddler | 44mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Additional Information
Tire Clearance:
47mm measured tire
Weight without Pedals:
9.5kg | Size M as pictured with all accessories
ASTM Classification:
Level 2
System Weight Limit:
120kg
